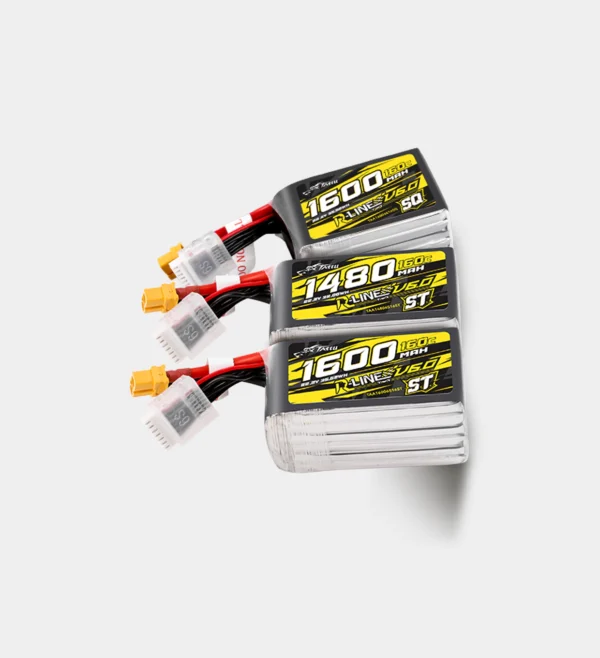

Tattu R-LINE V6.0 Series FPV Drone Battery

Tattu R-LINE V6.0 Series FPV Drone Battery

Tattu R-Line V6.0: The Evolutionary Successor in Professional FPV Power

The Tattu R-Line V6.0 represents the highly anticipated evolution of the acclaimed R-Line legacy, meticulously engineered for elite FPV Drone Battery performance. Powered by next-generation cell chemistry, this series boasts a monumental 160C discharge rate, delivering transformative gains in transient power delivery, throttle response, and electrochemical stability. Designed to sustain the rigors of high-intensity racing, the V6.0 provides the robust reliability required for podium-level performance.

In this iteration, the R-Line V6.0 introduces two distinct form factors—the ST (Standard) and SQ (Square/Short) versions. These specialized configurations are optimized for varying airframe architectures and mission profiles, offering enhanced adaptability to meet the diverse technical demands of the global FPV community. Elevate your flight dynamics with the Tattu R-Line V6.0 and empower your competitive edge in the next heat.

分类：

The Tattu R-Line V6.0 marks a significant technological leap in high-performance FPV racing power systems. By integrating nano-level electrochemical enhancements and a novel architectural design, this series redefines the limits of discharge efficiency and energy concentration for elite competition.

Technical Specifications: Tattu R-LINE V6.0

Model Number Capacity Config. Nominal Voltage Dimensions (LWH ±5mm) Weight (±5g)
BAT14806S16ST 1480mAh 6S 22.2V 77 * 37.5 * 36.5 mm 220g
BAT14806S16SQ 1480mAh 6S 22.2V 69.5 * 42 * 36.5 mm 220g
BAT16006S16ST 1600mAh 6S 22.2V 77 * 37.5 * 40 mm 240g
BAT16006S16SQ 1600mAh 6S 22.2V 70 * 42 * 41 mm 240g
BAT13006S16ST 1300mAh 6S 22.2V 78 * 39.5 * 33 mm 203g
BAT17006S16SQ 1700mAh 6S 22.2V 72 * 43 * 41 mm 250g
BAT17006S16ST 1700mAh 6S 22.2V 79 * 40 * 43.5 mm 247g

Key Technical Features and Advantages

  • Nano-Level Ion Transport: Proprietary conductive chemistry reduces internal resistance (IR) by 20%.

  • 3D Conductive Matrix: A three-dimensional network ensuring exceptionally stable high-rate discharge.

  • Superior Energy Metrics: Achieves a 17% increase in gravimetric energy density and a 26% boost in volumetric energy density.

  • Linear Power Delivery: Engineered for highly consistent and sustained voltage output under extreme aerodynamic loads.

  • Ruggedized Structural Architecture: Features reinforced materials designed for thermal resilience and superior impact resistance.

  • Specialized Form Factors:

    • SQ (Square/Short): Engineered for Centralized Mass, optimizing the aircraft’s center of gravity (CG) for enhanced maneuverability and “locked-in” handling.

    • ST (Standard): Utilizes standard industrial dimensions for broad compatibility and seamless installation across diverse FPV frames.

Bespoke FPV Battery Solutions by Grepow

As a premier global leader in electrochemical energy storage, Grepow offers comprehensive, customized engineering for high-discharge (up to 160C) FPV Drone Battery systems.

  • Cell Variants: High-discharge, LiHV (High Voltage), Cryogenic (-50°C), and High-Temp cells.

  • Configuration: No upper limits on scalable capacity or S/P configurations.

  • Longevity: Optimized for up to 600 cycles.

  • Thermal Range: Operational from -40°C to 60°C or -50°C to 50°C.
