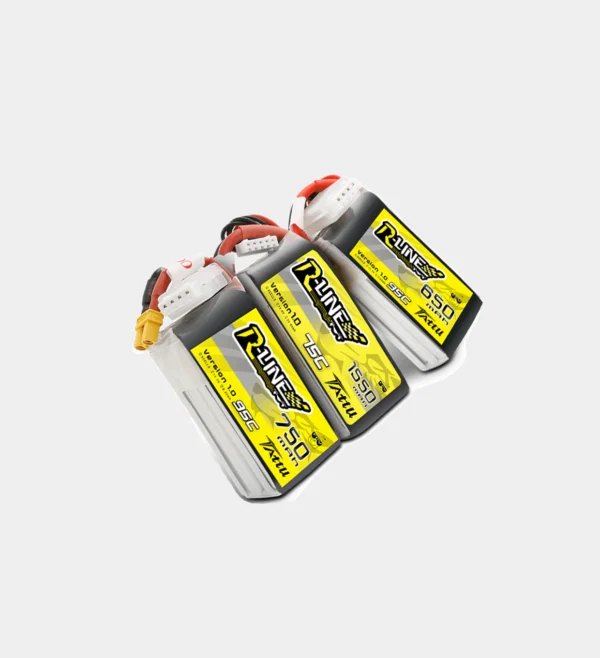

Tattu R-LINE 1.0 Series FPV Drone Battery

FPV piloting is a demanding discipline that pushes the boundaries of human reflexes and equipment limits. The BATFT Tattu R-Line is a premier product line engineered specifically for elite FPV racing competitions. As the commercialized iteration of our renowned Toppilot series, it boasts enhanced capacity, reduced internal resistance, and lower post-flight temperatures. These packs deliver a superior power-to-weight ratio that outperforms conventional graphene-based alternatives.

Tattu R-LINE 1.0 Series FPV Drone Battery Specifications

Product Model	Capacity (mAh)	Configuration	Discharge Rate	Nominal Voltage	Weight (±5g)	Dimensions (LWH)
Tattu R-LINE 1.0 500mAh 95C 1S1P	550	1S1P	95C	3.7V	15g	63 * 18.5 * 6mm
Tattu R-LINE 1.0 550mAh 95C 2S1P	550	2S1P	95C	7.4V	34g	80.5 * 16.5 * 12.5mm
Tattu R-LINE 1.0 550mAh 95C 3S1P	550	3S1P	95C	11.1V	51g	80.5 * 16.5 * 18.8mm
Tattu R-LINE 1.0 650mAh 95C 4S1P	650	4S1P	95C	14.8V	78g	59 * 31 * 23mm
Tattu R-LINE 1.0 650mAh 95C 6S1P	650	6S1P	95C	22.2V	135g	61 * 33 * 36mm
Tattu R-LINE 1.0 750mAh 95C 3S1P	750	3S1P	95C	11.1V	63g	58 * 30 * 19mm
Tattu R-LINE 1.0 750mAh 95C 4S1P	750	4S1P	95C	14.8V	81g	58 * 30 * 25mm
Tattu R-LINE 1.0 850mAh 95C 3S1P	850	3S1P	95C	11.1V	84g	58 * 30 * 22mm
Tattu R-LINE 1.0 850mAh 95C 4S1P	850	4S1P	95C	14.8V	104g	58 * 30 * 29mm
Tattu R-LINE 1.0 1050mAh 95C 4S1P	1050	4S1P	95C	14.8V	157g	74 * 36 * 23mm
Tattu R-LINE 1.0 1050mAh 95C 6S1P	1050	6S1P	95C	22.2V	170g	74 * 36 * 35.5mm
Tattu R-LINE 1.0 1300mAh 95C 4S1P	1300	4S1P	95C	14.8V	166g	74 * 36 * 31mm
Tattu R-LINE 1.0 1300mAh 95C 6S1P	1300	6S1P	95C	22.2V	239.5g	74 * 36 * 49mm
Tattu R-LINE 1.0 1550mAh 95C 4S1P	1550	4S1P	95C	14.8V	192.6g	74 * 36 * 36mm
Tattu FPV 1.0 1800mAh 95C 4S1P	1800	4S1P	95C	14.8V	205g	74 * 36 * 42mm
Tattu FPV 1.0 1800mAh 95C 6S1P	1800	6S1P	95C	22.8V*	288g	74 * 36 * 60mm

*Note: The 22.8V indicates a High Voltage (LiHV) configuration.

Technical Features and Advantages

• Advanced Material Science: Incorporates Al-Boehmite utilizing “X Technology” for superior thermal stability.

• Uniform Power Delivery: Ensures highly consistent and continuous voltage output throughout the discharge curve.

• Superior Volumetric Efficiency: Provides higher energy density compared to standard packs of identical dimensions.

• Extreme Discharge Rates: Specifically optimized for the high-intensity bursts required in professional FPV racing.

• Durability: Exceptional performance retention post-cycling and enhanced structural integrity for crash resistance.

Bespoke FPV Battery Solutions by BATFT As a preeminent global lithium-ion manufacturer, BATFT offers professional, customized engineering for high-discharge (up to 150C) FPV Drone Battery systems tailored to specific mission requirements.

• Battery Variants: High-discharge, High-voltage (LiHV), and specialized Cryogenic/Thermal-resistant cells.

• Capacity Range: No upper limits on scalable capacity solutions.

• Operational Longevity: Optimized for up to 600 cycles.

• Thermal Tolerance: Engineered for stable operation between -40°C to 60°C or -50°C to 50°C.

• Integrated Customization: Tailored weight, form factor, connectors, labeling, and specialized packaging.
