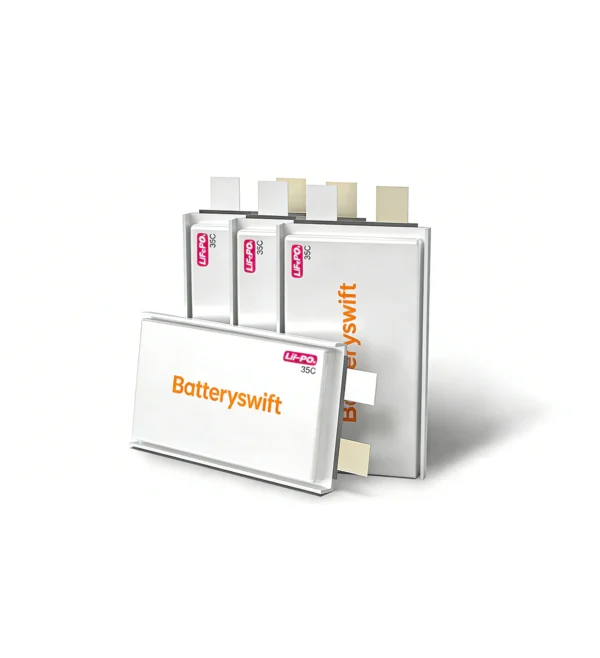

35C High-Rate Lithium Iron Phosphate (LiFePO4) Battery Solutions

Primary Application Fields BATFT’s high-rate LiFePO4 batteries are engineered for mission-critical hardware requiring massive energy bursts and long-term electrochemical stability. Key applications include:

• Emergency Systems: High-current jump starters and sports equipment igniters.

• Medical Technology: Precision electric bone drills and surgical power tools.

• Industrial Automation: Electric forklifts, AGVs, and heavy-duty industrial robots.

• Electric Mobility: Electric go-karts, motorized paragliders, and adjustable medical lift beds.

• Performance Racing: Auxiliary power and engine starting for high-performance motorsports. Our R&D department collaborates with global partners to deliver optimized, application-specific energy solutions.

Technical Specifications: 35C High-Rate LiFePO4 Series

Model	C-Rate	Voltage	Capacity	Max Cont. Current	Dimensions (TWL)	Weight (±g)
BATFT5764074	35C	3.2V	1700mAh	59.5A	5.5 * 63.5 * 74 mm	50.0g
BATFT4567106	35C	3.2V	2000mAh	70A	4.3 * 66.5 * 106.5 mm	58.0g
BATFT6053117	35C	3.2V	2500mAh	87.5A	5.6 * 52.5 * 116.5 mm	68.0g
BATFT5875110	35C	3.2V	3000mAh	105A	5.5 * 74.5 * 109.5 mm	88.0g
BATFT7580090	35C	3.2V	3300mAh	115.5A	7.2 * 79.5 * 89.5 mm	93.5g
BATFT9442135	35C	3.2V	3550mAh	124.25A	9.1 * 42.0 * 135.0 mm	99.0g
BATFT7567106	35C	3.2V	3600mAh	126A	7.2 * 66.5 * 106.0 mm	99.5g
BATFT8056117	35C	3.2V	3700mAh	120A	7.7 * 55.5 * 116.5 mm	98.0g
BATFT8967100	35C	3.2V	4000mAh	140A	8.6 * 66.5 * 100.0 mm	112.0g
BATFT8075110	35C	3.2V	4250mAh	148.75A	7.7 * 74.5 * 109.5 mm	122.0g
BATFTA785155	35C	3.2V	9800mAh	117.6A	10.4 * 84.5 * 154.5 mm	273.0g
BATFT99C0130	35C	3.2V	10000mAh	120A	9.5 * 119.5 * 130.0 mm	281.0g

Key Product Features

• Advanced Stacking Technology: Employs a laminated electrode architecture to achieve lower internal resistance, significantly outperforming traditional winding methods in discharge efficiency and cycle life.

• Extreme Power Delivery: Capable of sustaining 45C continuous discharge, a 90C burst for 2 seconds, and peak instantaneous pulses up to 150C.

• Fast Charging Support: Optimized for rapid replenishment with up to 5C charging rates.

• Superior Thermal Management: Enhanced discharge efficiency with exceptional stability and resilience across broad temperature fluctuations.

• Ultra-Thin & Versatile: Lightweight, compact form factors with flexible geometry to accommodate diverse hardware constraints.

Why Choose BATFT High-Rate LiFePO4?

Compared to standard high-rate Li-Po batteries, BATFT’s LiFePO4 series utilizes innovative chemical formulations to ensure an unparalleled safety profile and stable discharge dynamics. These cells offer an extended cycle life of up to 2,000 cycles and operate reliably at ambient temperatures up to 60°C. BATFT provides a Turnkey Customization Ecosystem: [Bespoke High-Rate Cells + Intelligent BMS + Structural System Design] Our ability to customize for specific industrial requirements grants your products a significant competitive edge in the global market.

• Eco-Friendly: Non-toxic chemistry with superior recyclability.

• High-Voltage Stability: Consistent 25C continuous discharge support.

• Robust Lifecycle: Rated for over 2,000 cycles for minimized TCO.

• Extreme Heat Tolerance: Rated for continuous operation at 60°C.

• Global Service Network: Instant localized technical support in China, USA, and Germany.

Comprehensive Services:

• Flexible Custom Solutions for Niche Applications

• Reliable & Proven Consistency for Mass Production

• Prototyping, Sampling, and OEM/ODM Services
