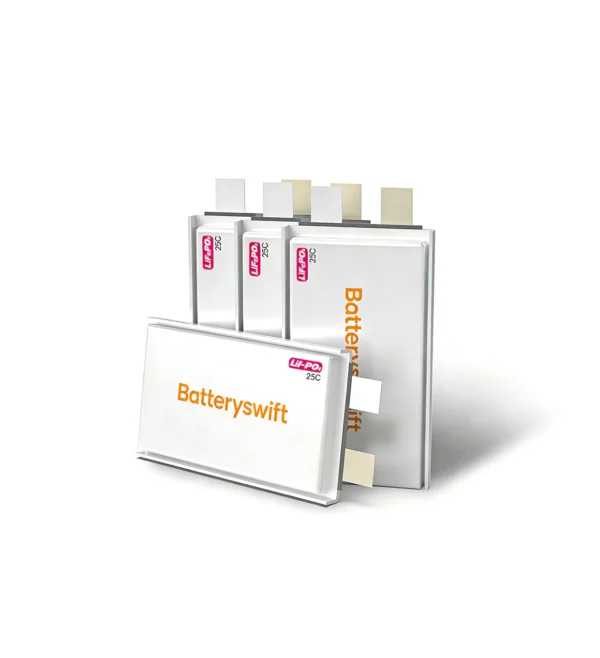

25C High-Rate Lithium Iron Phosphate (LiFePO4) Battery Solutions

High-Rate Lithium Iron Phosphate (LiFePO4) Battery Solutions

Application Fields BATFT high-rate LiFePO4 batteries are engineered for high-drain, mission-critical applications where safety and performance are paramount. They are widely utilized in:

• Emergency & Starting Power: Automotive jump starters and sports equipment ignition systems.

• Medical Devices: Precision electric bone drills and specialized surgical tools.

• Industrial Mobility: Electric forklifts, automated guided vehicles (AGVs), and robotic platforms.

• Specialized Transportation: Electric go-karts, motorized paragliders, and electric lift beds.

• Performance Engineering: High-performance racing and engine-starting solutions. Our R&D team works in close partnership with clients to provide optimized, bespoke energy solutions for complex hardware.

Technical Specifications: 25C High-Rate LiFePO4 Series

Model	Rate	Nominal Voltage	Capacity	Max Cont. Current	Dimensions (TWL)	Weight (±g)
BATFT5464074	25C	3.2V	1700mAh	42.5A	5.2 * 63.5 * 73.5 mm	46.5g
BATFT6445090	25C	3.2V	1900mAh	47.5A	6.2 * 44.5 * 90.5 mm	49.5g
BATFT8734096	25C	3.2V	2100mAh	52.5A	8.4 * 33.5 * 96.5 mm	52.5g
BATFT5954090	25C	3.2V	2100mAh	52.5A	5.7 * 53.5 * 91.0 mm	55.0g
BATFT7146094	25C	3.2V	2300mAh	57.5A	6.8 * 45.0 * 94.5 mm	58.0g
BATFT8348085	25C	3.2V	2500mAh	62.5A	8.0 * 47.5 * 85.5 mm	63.0g
BATFT7360078	25C	3.2V	2500mAh	62.5A	7.1 * 59.5 * 79.0 mm	63.0g
BATFT5961095	25C	3.2V	2550mAh	63.75A	5.7 * 60.5 * 96.0 mm	66.5g
BATFT5970096	25C	3.2V	2800mAh	70A	5.6 * 69.5 * 96.5 mm	73.0g
BATFT8442126	25C	3.2V	3500mAh	87.5A	8.1 * 41.5 * 127.0 mm	89.0g
BATFT6460119	25C	3.2V	3500mAh	87.5A	6.3 * 59.5 * 119.0 mm	90.0g
BATFT8061115	25C	3.2V	4350mAh	108.75A	7.7 * 60.5 * 115.0 mm	109.0g
BATFT8561115	25C	3.2V	4600mAh	115A	8.2 * 60.5 * 115.5 mm	118.0g
BATFT9161115	25C	3.2V	5000mAh	125A	8.8 * 60.5 * 115.0 mm	128.0g
BATFT8798112	25C	3.2V	7200mAh	180A	8.4 * 98.0 * 113.0 mm	185.0g
BATFT8678156	25C	3.2V	8000mAh	80A	8.2 * 77.5 * 153.5 mm	199.0g
BATFT8578185	25C	3.2V	9600mAh	160A	8.2 * 77.5 * 184.5 mm	243.0g

Key Features of High-Rate LiFePO4 Batteries

• Precision Stacking Technology: By employing a laminated electrode architecture, our cells achieve lower internal resistance, resulting in superior discharge dynamics and enhanced cycle life compared to traditional winding methods.

• Exceptional Power Output: Capable of sustaining 45C continuous discharge, a 90C burst (2 seconds), and a peak instantaneous pulse of 150C.

• Fast Charging Support: Optimized for rapid replenishment with up to 5C charging rates.

• Thermal Efficiency: Higher discharge efficiency with excellent temperature stability and resilience.

• Flexible Form Factors: Ultra-thin, lightweight, and compact design with customizable geometry to adapt to diverse spatial constraints.

Technology Overview

A Lithium Iron Phosphate (LiFePO4) battery is a lithium-ion system utilizing $LiFePO_4$ as the cathode and carbon as the anode. With a nominal cell voltage of 3.2V and a charge cut-off of 3.6V–3.65V, it facilitates energy transfer through the intercalation and de-intercalation of lithium ions. This chemistry is globally acclaimed for its stable operating voltage, high energy density, extended cycle life, and superior safety profile. LiFePO4 technology is the definitive choice for electric buses, specialized industrial vehicles, stationary energy storage (ESS), and military-grade applications.
