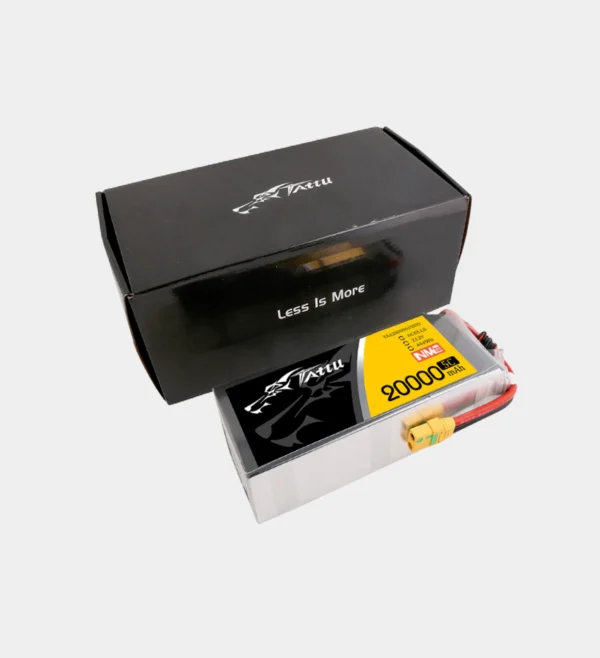

20000mAh 22.2V 6S Semi-Solid State Battery | 275Wh/kg

20000mAh 22.2V 6S Semi-Solid State Battery: The Next Generation of UAV Endurance

High Energy Density & Lightweight Design

Redefine your drone’s flight limits with the Batteryswift semi-solid state battery pack. Utilizing cutting-edge cell chemistry, this 20000mAh 6S pack achieves a high energy density of 275Wh/kg while being 15% lighter than standard lithium batteries. This translates directly into extended flight times for professional UAV platforms.

Technical Specifications

– Model: TA202606S5X9S
– Nominal Voltage: 22.2V (6S1P)
– Capacity: 20000mAh (444Wh)
– Energy Density: 275Wh/kg
– Discharge Rate: 5C (Ideal for 1-3C nominal operations)
– Weight: 1910g ± 150g
– Cycle Life: >80% capacity after 1,000 cycles
– Dimensions: 192 x 76 x 58 mm (L x W x H)

Key Product Characteristics

– Advanced Silicon Anode: Enhanced over-discharge resilience down to 2.5V.
– Superior Safety: Features a composite coating separator and optional Smart BMS integration.
– Extreme Durability: Optimized for high-temperature storage and long-cycle reliability.
– Rapid Charge Capability: Minimizes ground time between missions.
– Fully Customizable: Tailored shapes and sizes available for specific airframe requirements.

Professional Applications

This semi-solid state solution is perfectly suited for small to medium-sized commercial drones requiring long-lasting endurance:
– Mapping & Surveying: Maximize acreage coverage per flight.
– Infrastructure Inspection: Ensure reliable power for high-precision sensors.
– Logistics & Delivery: Increase payload efficiency through reduced battery weight.
– Search & Rescue: Dependable power in critical environments.

Why Partner with Batteryswift?

– Direct Manufacturer: Robust R&D and massive production capacity with short lead times.
– Guaranteed Performance: Independently developed cells with verified capacity ratings.
– Global Quality Standards: Fully compliant with international battery safety certifications.
– Worldwide Support: Immediate technical assistance available in China, the USA, and Germany.

Customized Solutions

We provide flexible support for bespoke battery projects, including:
– Prototyping and mass production.
– OEM and ODM services.
– Customizable voltage (4.2V/4.45V) and capacity (4200mAh to 84000mAh) options.

Maximize your UAV’s potential with Batteryswift Semi-Solid State technology.

Why Choose Semi-Solid State

[ PERFORMANCE COMPARISON]

Semi-Solid State vs. Traditional LiPo: Why 275Wh/kg Matters?

When comparing the Batteryswift 275Wh/kg semi-solid state battery to standard lithium polymer (LiPo) cells (which typically average 150-190Wh/kg), the performance gap is significant:

1. Extended Flight Time (The +15% Advantage)
By reducing battery weight by 15% without sacrificing capacity, your UAV carries less “dead weight.” This efficiency gain can extend mission durations by up to 20-30%, allowing mapping and inspection drones to cover more ground in a single battery cycle.

2. Superior Energy Density
Standard LiPo batteries often struggle with the trade-off between capacity and weight. Our semi-solid technology breaks this barrier, offering 275Wh/kg. This allows for higher payload capacities for specialized sensors and cameras without increasing the drone’s takeoff weight.

3. Enhanced Safety & Thermal Stability
Traditional LiPo batteries are sensitive to punctures and high temperatures. Our semi-solid cells utilize a composite coating separator and a more stable internal electrolyte structure, significantly reducing the risk of thermal runaway and increasing operational safety in harsh environments.

4. Investment Longevity (1000+ Cycles)
While standard drone batteries often degrade after 200-300 cycles, Batteryswift semi-solid state batteries maintain over 80% capacity after 1,000 cycles. This long-term reliability drastically reduces the “Total Cost of Ownership” (TCO) for commercial fleet operators.

[SUMMARY TABLE FOR QUICK VIEW]

| Feature | Standard LiPo Battery | Batteryswift Semi-Solid State |
|———————|———————–|——————————-|
| Energy Density | 150 – 190 Wh/kg | 275 Wh/kg |
| Weight Efficiency | Baseline | 15% Lighter |
| Cycle Life | 300 Cycles | 1000+ Cycles |
| Discharge Floor | 3.0V – 3.2V | 2.5V (Deep Resilience) |
