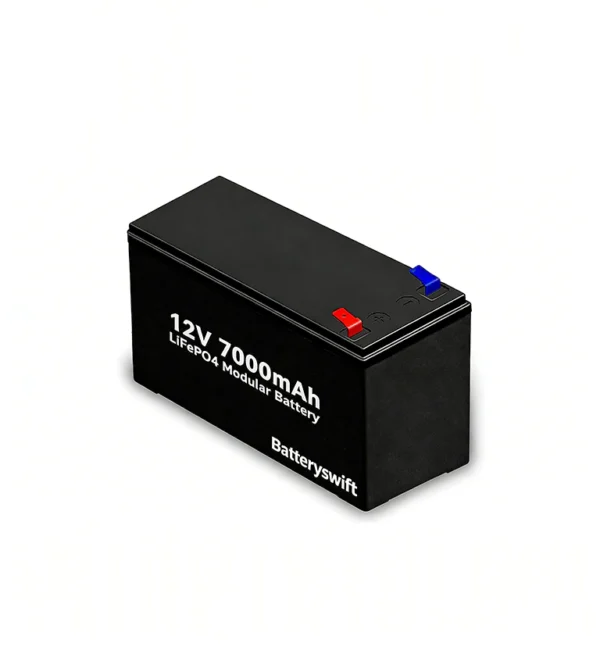

12V 7000mAh Modular LiFePO4 Battery Solution

Product Overview

Key Features of Modular LiFePO4 Battery:

• High-Rate Performance: Supports up to 5C high-speed charge and discharge cycles.

• Power & Longevity: Delivers high power density combined with exceptional cycle life.

• Enhanced Safety Standards: Integrated Battery Management System (BMS) provides real-time monitoring and multi-layer protection for mission-critical reliability.

• Extended Runtime: Optimized energy efficiency for longer operational cycles.

• Scalable Architecture: Easily expandable voltage and capacity configurations.

• Compact Modular Design: High energy density in a lightweight form factor, significantly saving installation space and weight.

• Advanced BMS Control: Enables high-current discharge management with integrated control and safety safeguards.

• Plug-and-Play Installation: Simplified design for seamless series and parallel connections.

Technical Specifications: 12.8V 7Ah Modular Battery

Parameter	Specifications
Chemistry	Lithium Iron Phosphate ($LiFePO_4$)
Nominal Voltage	12.8V
Nominal Capacity	7Ah (7000mAh)
Power Connector	6.35mm Tab / Terminal
Charging Current	7A (Standard) / 23A (Maximum)
Discharge Current	23A (Continuous) / 35A (Peak, 30s)
Charging Mode	CC/CV (Constant Current/Constant Voltage)
Dimensions (LWH)	151 * 65 * 92 mm
IP Rating	IP66 (Water & Dust Resistant)
Enclosure Material	High-durability ABS

Application Sectors

BATFT’s modular LiFePO4 series is engineered for versatility and reliability across various demanding fields:

• Infrastructure: Telecommunication power systems and Uninterruptible Power Supplies (UPS).

• Energy Networks: Off-grid systems and micro-grid integration.

• Safety & Security: Security/protection systems and emergency lighting.

• Healthcare: Portable medical diagnostic and life-support equipment.

• High-Drain Starting Power: Optimized for any application requiring high-voltage, large-capacity, or high-rate fast-charging starting power.
